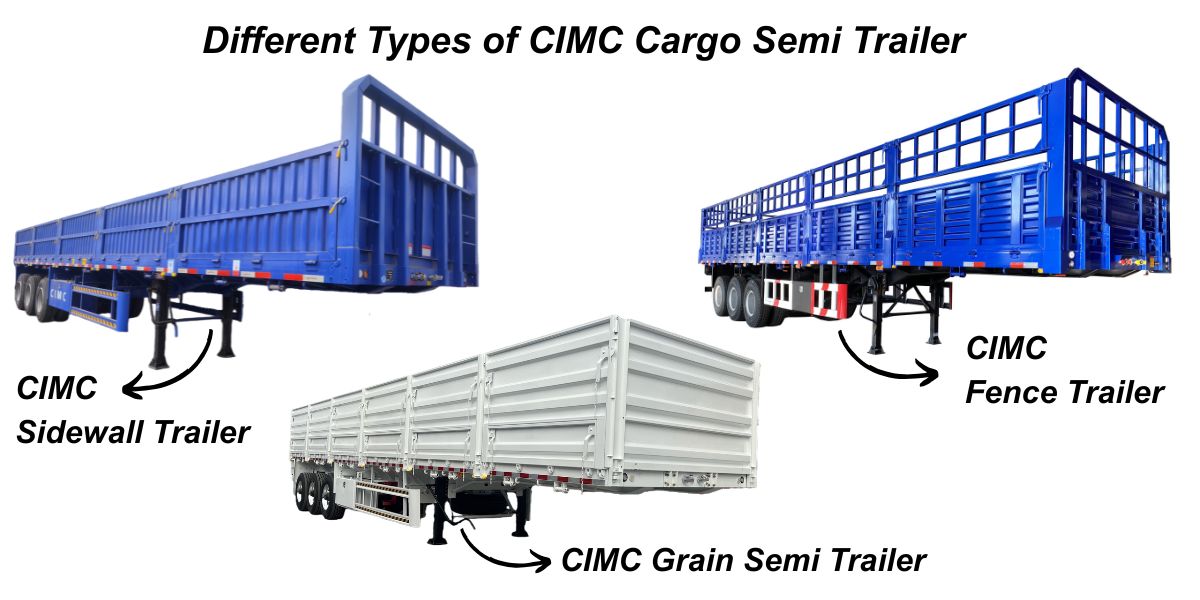

1. What are the three types of CIMC trailer?
2. What are the parts of cargo semi trailer?
3. How much does a CIMC cargo trailer for sale?

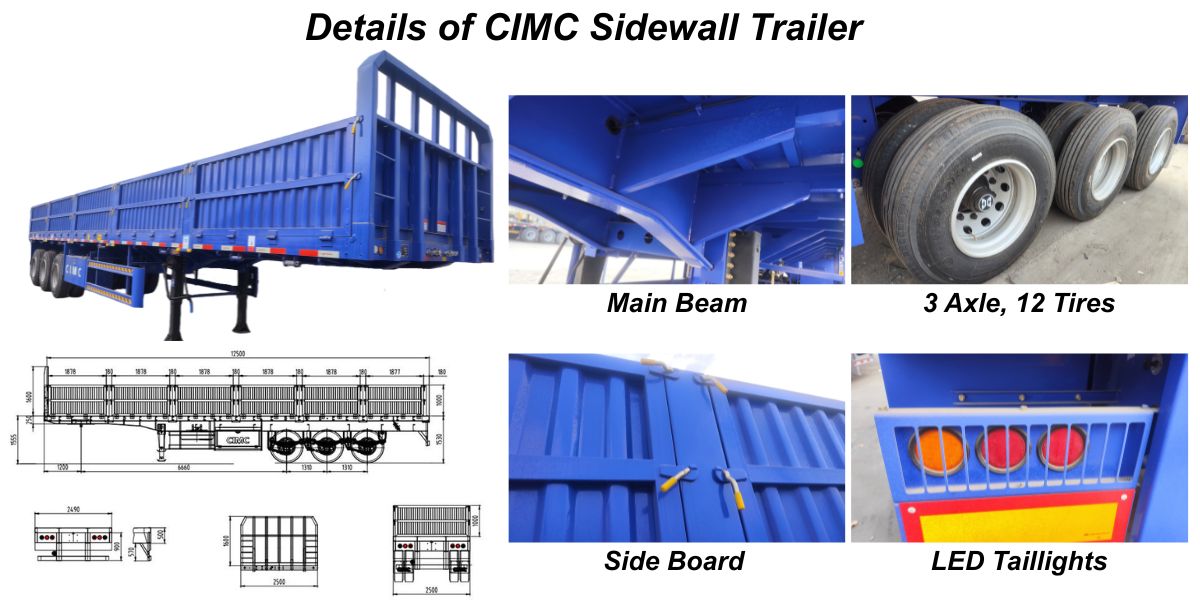

The CIMC sidewall trailer is a highly versatile and durable transport solution designed for carrying a wide range of bulk cargo and general goods. The chassis of CIMC sidewall trailer utilizes high-strength carbon steel plates, forming a robust spatial frame structure through welded longitudinal beams and integral through-beams, ensuring load-bearing capacity.
Its sidewall structure provides additional protection for cargo during transportation, making it especially suitable for transporting bagged goods, agricultural products, steel materials, building materials, and other loose or packaged cargo. The robust chassis design ensures excellent load-bearing capacity while maintaining stability and safety even on long-distance and rough-road operations.
For transporting different types of bulk commodities, CIMC sidewall trailer offer a wide range of options. The side panel height is typically around 600-1200mm, but the side panel structure can be either flat or corrugated, and different door opening methods such as five- or six-opening are available for convenient loading and unloading. Optional configurations include a front gantry, toolboxes (single-sided, double-sided, or optional), and various types of outriggers.
To meet the high safety standards of the international market, CIMC sidewall trailer offer a variety of chassis suspension and braking system configurations. In addition to traditional leaf spring suspension, air suspension is widely available as an option, providing better shock absorption and cargo protection. In terms of braking system, in addition to high-performance drum brakes, disc brakes and ABS (anti-lock braking system) can also be configured according to customer requirements. Some models even offer EBS (electronic braking system) option, which significantly improves the driving safety of the CIMC sidewall trailer in complex road conditions.
Furthermore, to address the harsh maritime environments potentially encountered during export transport, all CIMC sidewall trailer components undergo shot peening, and the cargo box panels undergo pre-treatment such as pickling and phosphating, significantly enhancing paint adhesion and effectively resisting corrosion from sea winds and salt spray.
The CIMC sidewall trailer is also designed with a strong focus on operational safety and transportation efficiency. Its optimized structural design lowers the vehicle’s overall weight while maximizing payload capacity, helping transport companies improve fuel economy and increase profitability. The CIMC sidewall trailer can be equipped with different axle configurations, suspension systems, and tire specifications according to customer requirements and local road conditions. Whether used for domestic transportation or cross-border logistics, the CIMC sidewall trailer delivers reliable performance, long service life, and excellent economic value for transport businesses around the world.

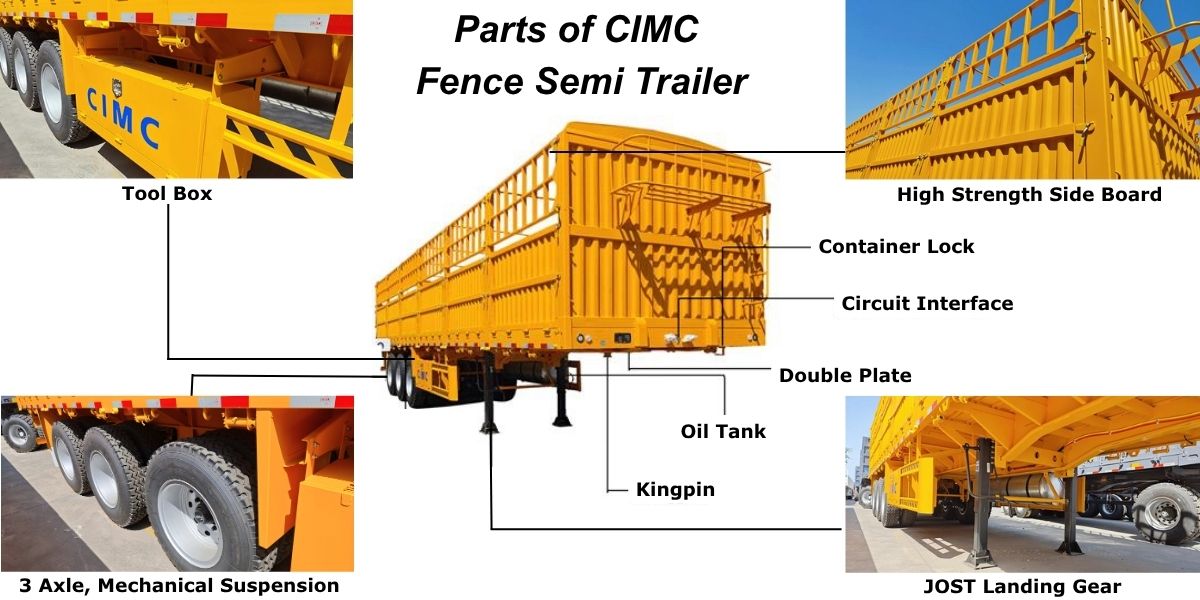

The CIMC fence trailer is a reliable and practical transportation solution specially designed for carrying agricultural products, livestock feed, daily commodities, construction materials, and various bulk cargo. Featuring a strong fence-style structure, this trailer provides excellent cargo protection while maintaining convenient loading and unloading operations.
Addressing the challenges of complex road conditions and heavy-load demands prevalent in regions like Africa, CIMC fence trailer incorporate numerous innovative designs. For example, they utilize a modular design concept and reinforced longitudinal beams, while the chassis has been specifically widened and strengthened, significantly enhancing the vehicle's load-bearing capacity and torsional strength, perfectly adapting to the harsh local transportation environment.
Manufactured with high-strength steel and advanced welding technology, the CIMC fence trailer offers superior durability and stability, making it highly suitable for long-distance transportation under complex road conditions. Its reinforced chassis and optimized structural design ensure excellent carrying capacity and long service life, which is highly valued by transport companies operating in demanding markets.
One of the major advantages of the CIMC fence cargo semi trailer is its outstanding versatility in cargo transportation. The fence structure allows for better ventilation and flexible cargo securing, making it ideal for transporting agricultural goods such as vegetables, fruits, grain bags, and livestock supplies. At the same time, the CIMC fence trailer can also efficiently transport palletized cargo, industrial products, and packaged goods. The side fence panels can be customized in different heights and configurations according to transportation requirements, providing operators with greater flexibility for different logistics applications. In addition, the trailer’s wide loading platform and practical design significantly improve loading efficiency and reduce labor costs during cargo handling.
CIMC also pays great attention to the durability and operating economy of the fence cargo semi trailer. In the crucial process of coating and corrosion protection, CIMC employs a dual-protection process combining KTL electrophoresis and powder coating, replacing traditional paint spraying. This process results in a paint finish with superior adhesion, weather resistance, and corrosion resistance, effectively resisting salt spray corrosion during maritime transport and extreme operating conditions in regions like Africa, significantly extending the product's lifespan. It is this meticulous attention to detail in unseen processes that has established CIMC's products as a symbol of high-quality "Made in China" in the minds of overseas users.
In summary, CIMC fence trailer transcend the realm of ordinary transportation vehicles; they represent a comprehensive solution integrating high-strength materials, intelligent manufacturing, modular design, and full lifecycle services. Whether addressing the complex road conditions of Africa, the logistics upgrade needs of Southeast Asia, or the energy and mineral transportation of Central Asia, CIMC leverages its strong global resource integration capabilities and localized development strategy to provide the most tailored "Chinese solutions," thereby continuously enhancing the reputation of "Made in China" on the global commercial vehicle stage.

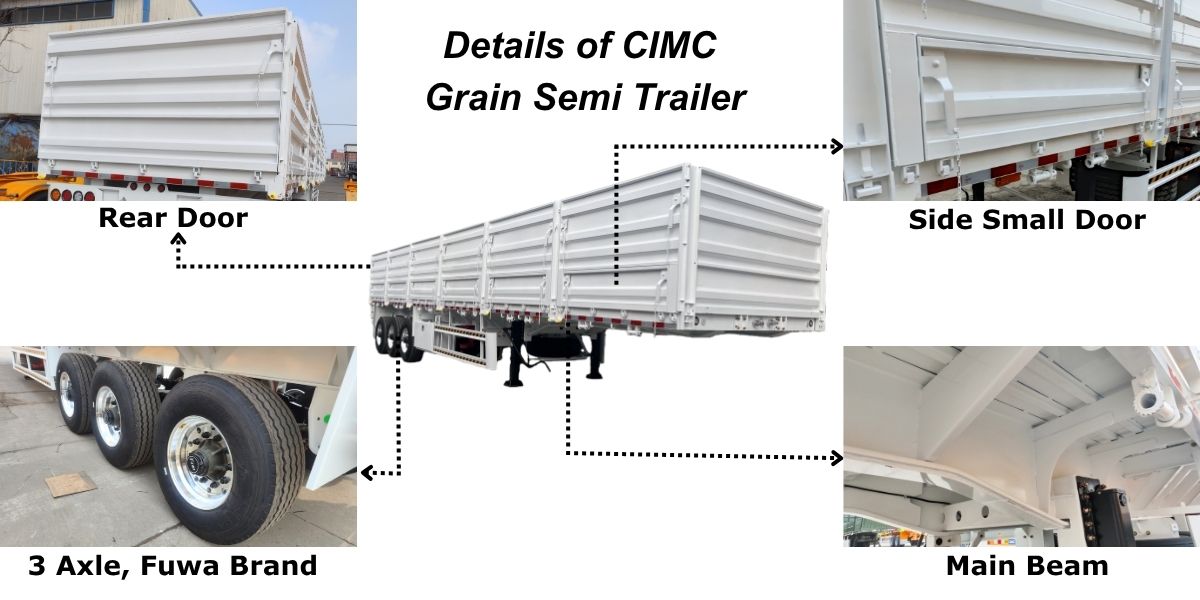

The CIMC grain semi trailer is specially designed for the efficient transportation of grain, agricultural products, and other bulk cargo. Built with advanced manufacturing technology and high-strength steel materials, this trailer provides excellent durability, large loading capacity, and reliable transportation performance for long-distance operations. The trailer is widely used for transporting wheat, corn, rice, soybean, feed, fertilizer, and other agricultural commodities, making it an important transportation solution for farms, grain trading companies, logistics providers, and agricultural supply chains. Its optimized structural design ensures stable operation even under heavy loading conditions and rough road environments.
One of the key advantages of the CIMC grain semi trailer is its large cargo capacity and highly efficient loading and unloading performance. The trailer body is carefully engineered to maximize internal storage space while maintaining overall structural strength and vehicle stability. The genius of this design lies in its flexibility; the side walls can be opened or completely removed, allowing for rapid loading and unloading using forklifts, loaders, or conveyor systems at grain elevators and processing facilities. Constructed from high-strength steel such as Q345 grade material, these trailers are engineered for durability and high impact resistance, enabling them to withstand the rigors of frequent loading and unloading in demanding agricultural environments. For long-distance transport, these side wall trailers are often paired with robust canopy or tarpaulin systems. This sealing effectively protects the grain from rain, moisture, and contaminants during transit while also preventing spillage, thereby ensuring the cargo arrives at its destination in optimal condition.
Beyond the structural design, CIMC ensures that all its grain trailers, regardless of configuration, are built on a foundation of world-class components and precision manufacturing. The chassis is typically a welded space-frame structure using high-strength steel longitudinal beams, providing exceptional torsional rigidity and bending resistance for stable handling even when fully loaded. Key suspension and axle components are sourced from leading global brands like BPW, FUWA, and JOST, with options for mechanical leaf-spring suspension for rugged durability or airbag suspension for enhanced cargo protection and ride comfort. The manufacturing process itself employs advanced technologies, including robotic automatic tracking submerged arc welding for the main beams and shot blasting of sub-assemblies to ensure superior paint adhesion and corrosion resistance—a critical factor for equipment operating in dusty and variable agricultural climates. CIMC grain semi trailer helps transport companies increase payload efficiency, reduce fuel consumption, and lower maintenance costs, delivering outstanding economic value and dependable performance for agricultural transportation businesses worldwide.
CIMC cargo semi trailer is mainly composed of several important structural and functional parts that work together to ensure safe, stable, and efficient cargo transportation.
The most important component is the chassis frame, which serves as the main load-bearing structure of the CIMC cargo semi trailer. The frame is usually manufactured from high-strength steel to provide excellent durability and carrying capacity under heavy-load conditions. Its core components are two longitudinal beams running through the front and rear of the vehicle body, typically rolled or welded from high-strength carbon steel plates. These beams act like two spines, bearing the majority of the weight of the cargo. Between these two longitudinal beams are numerous crossbeams arranged densely, employing an integral through-type structure to firmly connect the left and right longitudinal beams, forming a robust "ladder"-shaped frame. The ingenuity of this structural design lies in its ability to effectively distribute the impact force from the road surface and the pressure of the cargo evenly throughout the entire frame, thereby avoiding stress concentration and ensuring that the CIMC cargo semi trailer does not undergo permanent deformation under heavy loads and bumpy road conditions.
Mounted on the frame is the cargo platform or floor, which is designed to support different types of cargo such as bagged goods, construction materials, agricultural products, and industrial equipment. The chassis material is also carefully selected, primarily using high-strength steel such as Q355, which combines wear resistance and impact resistance. The sidewall panels are installed along both sides of the CIMC cargo semi trailer to protect the cargo from falling during transportation, and many models use detachable or drop-side structures to make loading and unloading more convenient. Furthermore, CIMC cargo semi trailer has an innovative patent for its upright connection method. Through a modular design of connecting plates and pull plates, it achieves rapid assembly and disassembly of the side panels and enhances their ability to withstand compression. For transporting special goods such as steel coils, CIMC has even developed a "concave core" chassis with an arc-shaped concave surface, using the concave surface to stabilize the steel coils and prevent them from rolling.
Another essential part of the CIMC cargo semi trailer is the running gear system, which includes the axles, suspension system, tires, and braking system. The rear half of the chassis typically houses three axles (a three-axle assembly), with a total load capacity of up to 24 tons. The axles are connected to the chassis via a suspension system, and CIMC cargo semi trailer offers a variety of suspension options to meet different transportation needs. Traditional leaf spring suspensions are simple in structure and have a high load-bearing capacity, suitable for heavy-duty conditions; while more advanced air suspensions are becoming standard on an increasing number of models, providing better shock absorption, protecting cargo from bumps, and allowing for adjustable chassis height for easy docking with loading platforms. In terms of braking, CIMC cargo semi trailer generally employ a dual-circuit air brake system, equipped with reliable relay valves and energy storage pumps, ensuring safety during parking and emergency braking. To shorten braking distance and prevent wheel lock-up and skidding, anti-lock braking systems (ABS) are standard. CIMC selects ABS controllers from leading domestic and international brands such as WABCO and KEMET, ensuring extremely high reliability.
The CIMC cargo semi trailer also includes several important auxiliary components designed to improve operational convenience and safety. The landing gear supports the trailer when it is disconnected from the tractor head, while the kingpin connects the trailer securely to the tractor unit. CIMC cargo semi trailer equipped with toolboxes, spare tire carriers, rope hooks, and cargo lashing devices to improve cargo securing and daily operation efficiency. Electrical systems such as lighting, wiring harnesses, and reflective markings are installed to enhance visibility and comply with transportation safety regulations. In addition, CIMC cargo semi trailer can be fitted with tarpaulin systems or container locks according to specific transportation requirements, making them more versatile for different logistics and cargo applications.
The price of a CIMC cargo trailer for sale can vary significantly depending on the trailer type, axle configuration, dimensions, payload capacity, suspension system, and optional specifications selected by the customer. In general, a standard CIMC cargo trailer for sale is usually priced between USD 10,000 and USD 20,000 for export markets. Simpler models with basic mechanical suspension and standard configurations are typically more affordable, while high-end versions equipped with air suspension, reinforced chassis structures, premium axles, or customized designs will have higher prices. Factors such as steel material costs, international shipping rates, and local import taxes can also influence the final purchase cost.
First, the core technology and manufacturing process of the vehicle itself are the hard costs that determine its price base. This is not simply an accumulation of steel, but a reflection of the value of materials science and advanced manufacturing. As an industry leader, CIMC widely uses high-strength steel in its cargo trailer for sale, and the procurement cost of this type of material is far higher than that of ordinary steel. In terms of manufacturing processes, CIMC's automated welding and KTL electrophoresis powder coating processes, while requiring significant initial equipment investment, ensure precise and consistent frame welding and an exceptionally long paint lifespan in marine or highly corrosive environments. Furthermore, the selection of key core components is also a significant cost component. For example, using ABS anti-lock braking systems, air suspension, or disc brakes from leading international brands like WABCO significantly improves safety compared to standard configurations, but also directly increases the initial purchase price. Therefore, the cost of a high-spec CIMC cargo trailer for sale largely consists of these unseen but crucial high-quality materials and components that play a vital role in long-term operation.
Secondly, the highly customized configurations and specific specifications of the models lead to substantial price differences within the same flatbed truck category. CIMC cargo trailer for sale is not standard assembly line parts but highly flexible industrial products within the permitted scope of the official announcements. From the perspective of overall vehicle dimensions, the body length of 11 meters, 13 meters, or even longer, and the different heights of the side panels (600mm, 800mm, or 1200mm), directly determine the amount of steel used and the complexity of the chassis, thus affecting pricing. Optional features are even more sensitive areas for price fluctuations: whether the floor plate uses 2mm or thicker steel, whether the upper and lower flanges of the longitudinal beams are 8mm or 10mm thick, whether the axles are CIMC's own brand or brands like FUWA or BPW, toolboxes, spare tire carriers, and even outriggers—all these optional items, when combined, will cause the final price to fluctuate significantly above the base guide price.
Another important factor affecting the cost of a CIMC cargo trailer for sale is the transportation and shipping method. Many customers choose container transportation because it can reduce sea freight costs and better protect the trailer from seawater corrosion during shipment. Others may choose bulk cargo vessel transportation for oversized trailer configurations. Although the initial investment may vary, CIMC cargo trailer for sale is widely recognized for their strong durability, long service life, low maintenance costs, and high transportation efficiency. For many logistics and transport companies, investing in a high-quality CIMC cargo trailer for sale can provide excellent long-term economic value and reliable operational performance.
